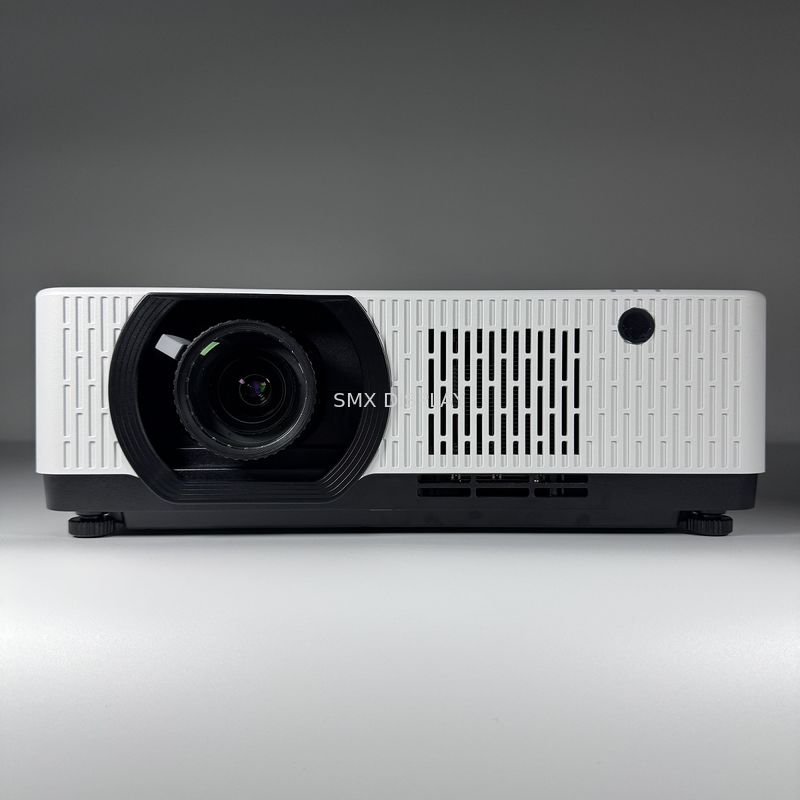

| 8200 Lumen 3LCD Laser Projector |
| Key parts |
|
|
| |
Model No. |
MX-VL820U |
| Brightness(Lumen) |
8200 |
| Resolution |
WUXGA |
| Light source |
NICHIA LASER |
| Overall Spec |
|
|
| Panel |
Display Panel |
3x0.64" with MLA |
| Display Technology |
Liquid Crystal Display |
| Native Resolution |
WUXGA (1920 x 1200) |
| Light source lifetime |
Full Normal/Normal mode |
20000hrs |
| ECO1 mode |
30000hrs |
| ECO2 mode |
30000hrs |
| Projection Lens |
F |
1.58-2.02 |
| f |
15.3mm-24.6mm |
| Zoom/Focus |
Manual |
| Throw Ratio |
1.08 (wide)-1.76 (tele) |
| Zoom Ratio |
1.6 |
| Screen size |
30-300 inch |
| Lens Shift |
V: + 60%, H: +/- 29% |
| CR |
Contrast Ratio
(FOFO) |
5000000:1 |
| Noise |
Noise(dB) *1 |
39dB(Normal)
31dB(ECO1)
29dB(ECO2) |
| Uniformity |
Uniformity(Actual Min)
-JISX6911 |
80% |
| AR |
Aspect Ratio |
Native:16:10
Compatible: 4:3/16:9 |
| Terminal(I/O port) |
|
|
| Input |
VGA |
*1 |
| HDMI 1.4B(IN) |
*2 |
| USB-A |
*1 |
| USB-B |
*1 (Display) |
| RJ45 |
*1 (Display) |
| HD BaseT |
*1(Optional) |
Audio in
(mini jack,3.5mm) |
*1 |
| Output |
VGA |
*1 |
Audio out
(mini-jack,3.5mm) |
*1 |
| Control |
RS232 |
*1 |
| RJ45 |
*1 (Control) |
| USB-B |
*1 (For upgrade) |
| General Spec |
|
|
| Audio |
Speaker |
16W*1 |
| Dust filter |
W/Filter |
| Filter Lifetime |
8000h |
| Power Consumption |
Power Requirements |
100~240V@ 50/60Hz |
Power Consumption
(Normal) (Max) |
425 |
Power Consumption
(ECO1) (Max) |
285 |
Power Consumption
(ECO2) (Max) |
235 |
ECO Standby Mode
Power Consumption |
<0.5W |
| Temp.&Humidity |
Operating Temp. |
0m≤Altitude≤1700m,
Ambient 0°C~50°C |
1700m＜Altitude＜3000m,
Ambient 0°C~40°C |
| Operating humidity. |
20-85% |
| Store Temp. |
-10 to 50°C |
| High altitude |
0~3000m |
| Other Functions |
|
|
| Keystone |
Keystone Correction
(Lens@center) |
V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
4 Corner Correction
Grid image tune |
| OSD |
Languages |
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazakh, Vietnamese ,Thai, Farsi |
| LAN Control |
LAN Control-RoomView
(Crestron) |
Yes |
| LAN Control--AMX Discovery |
Yes |
| LAN Control--PJ Link |
Yes |
| Scanning Frequency |
H-Synch Range |
15~100KHz |
| V-Synch Range |
24~85Hz |
| Display Resolution |
Computer Signal Input |
VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input |
480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
| SW setting |
Auto Setup |
INPUT SEARCH, AUTO PC ,Auto Keystone |
| Blank |
Yes |
| Suspend |
Yes(5 minutes no signal as default) |
| Picture mode |
Dynamic, Standard, Cinema,
Colorboard,sim-DICOM ,Blackboard(Green) |
| Cooling time |
0s,normal,30s |
| Auto Ceiling |
Yes |
| D-Zoom |
1~33 |
| Others |
360° projection |
Yes |
| Edge Blending |
Yes |
| Dimension&Weight |
|
|
| |
Product Size (mm) |
405 (W)*358(D)*137(H) |
| Net. Weight (KG) |
~7.9KG |
| Packaging Size(mm) |
510 (W)*498(D)*260(H) |
| Gross. Weight (KG) |
~10.4KG |
| Accessory |
|
|
| |
Manual Languages |
Chinese, English |
| Standard Accessaries |
Power cord, HDMI cable, and Remote control |
| |
Warranty |
3years |
|
